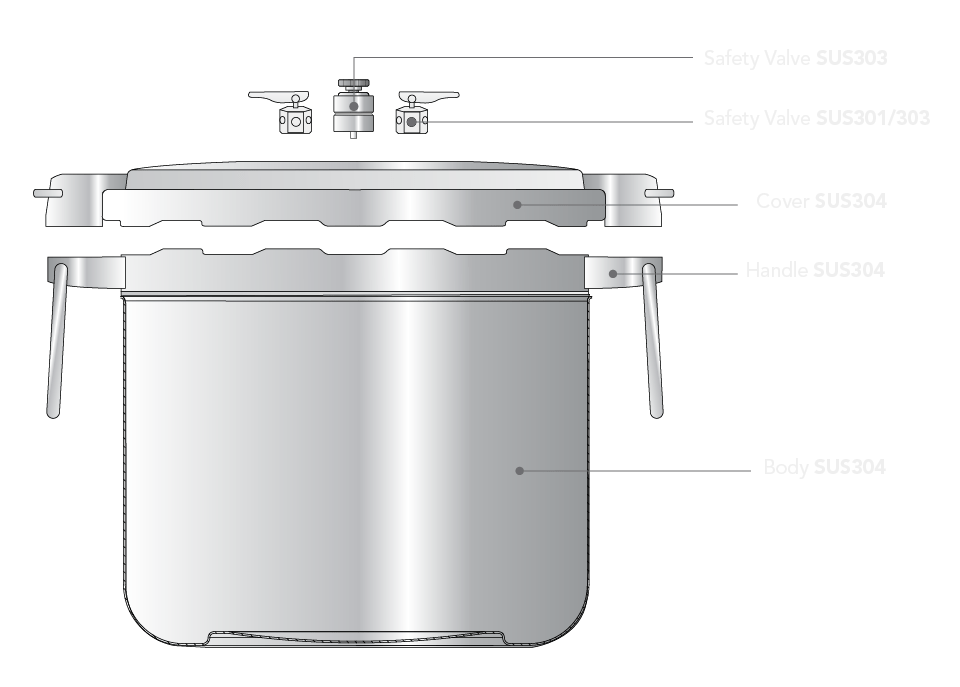

Materials Spec
All body parts are made by SUS 301, 303, 304 stainless steel.
SUS is the typical Japanese Industrial Standards (JIS) designation for stainless grades. American and Japanese steel grades line up identically.

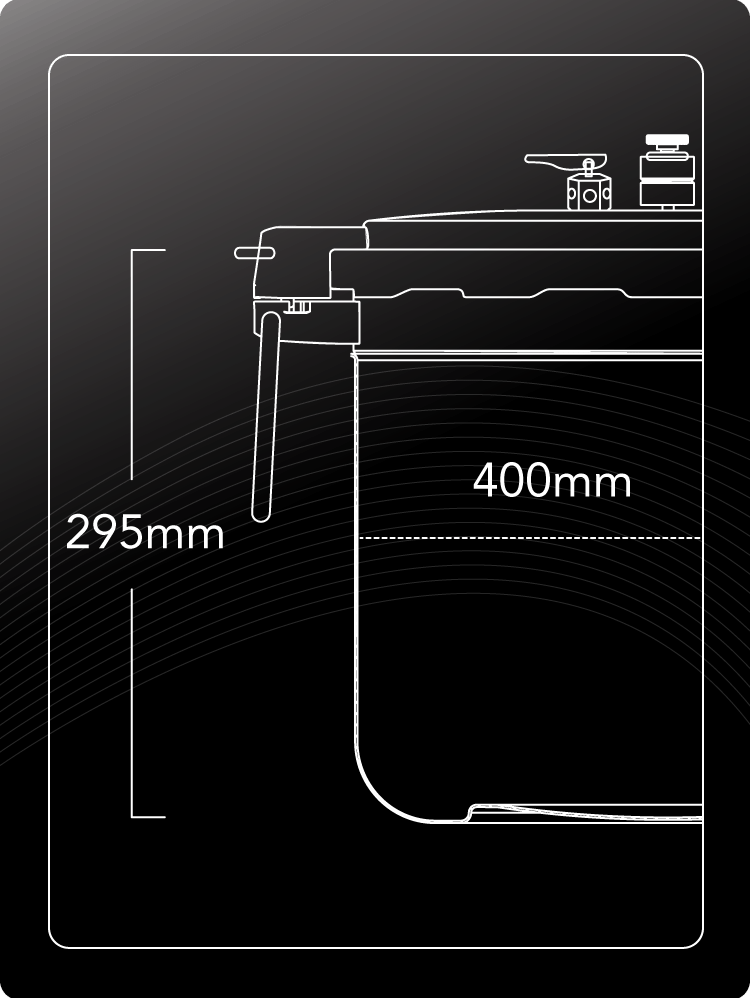

Dimension
Volume 35L
Width 400 x Height 295 (mm)
Material Thickness 1.5 (mm)
Net Weight 8.9 (kg)
Operating Pressures
Indicator
0.04 kgf/cm²
Safety Valve 1 & 2
1.2 kgf/cm²
3 Stage Valve
Working pressure 0.5, 0.75, 1.0kgf/cm²
Extra Safety Valve
2 kgf/cm²

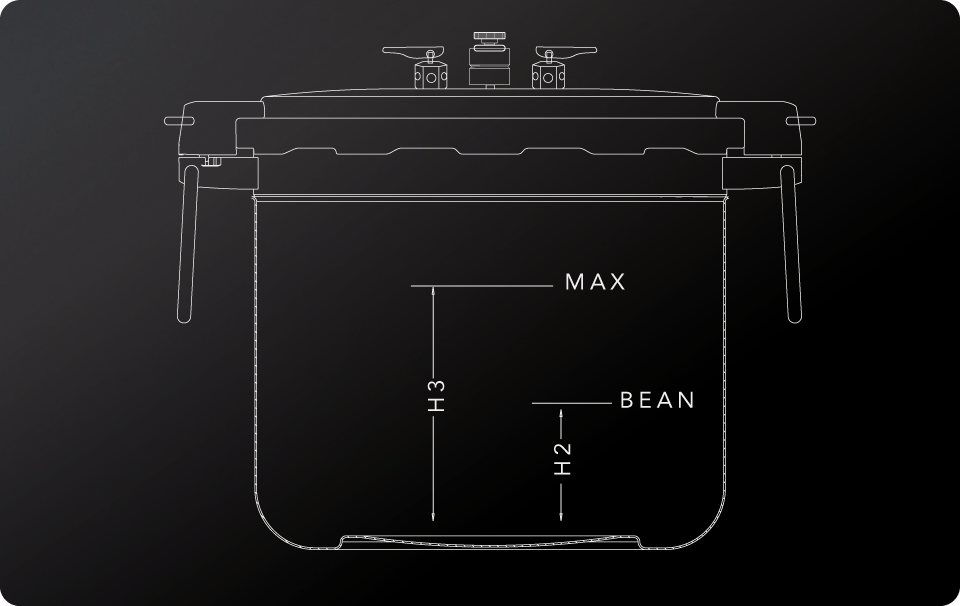

Body Marking
| CAPACITY | “BEAN”(H2) | “MAX”(H3) |
| 35L | 98.00 | 197.00 |
